性能特点/Performance characteristics

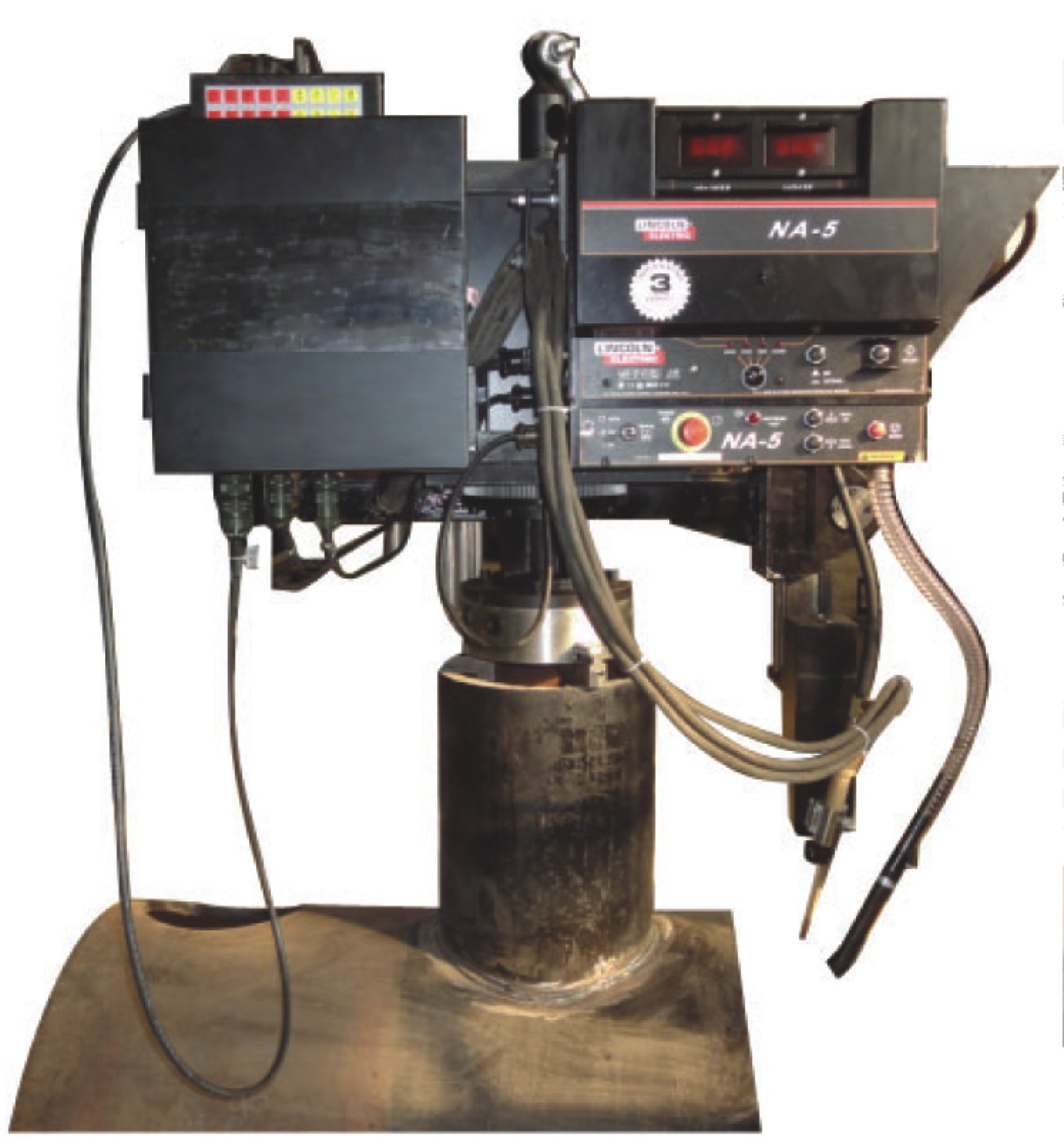

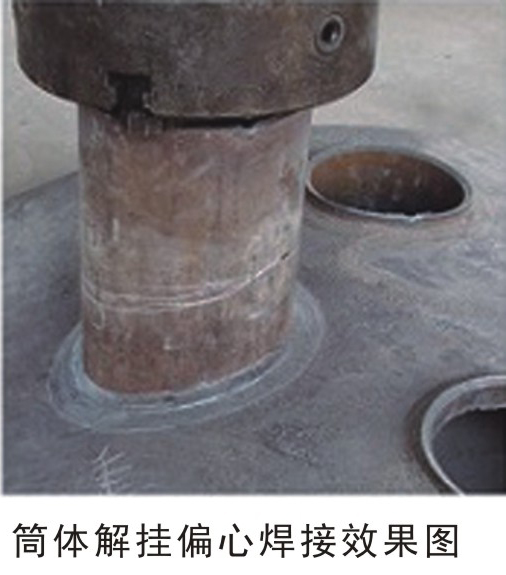

※ 本设备为四轴联动数控系统,可在筒体、封头等曲面上进行马鞍形焊接,相贯孔的形式为垂直正交、偏心垂直相贯等。

※ 在线示教功能能够修正依据输入参数自动生成的理论相贯运动轨迹,去除由于工件或定位不标准造成的运动误差,从而保证焊接质量。

※ 设备具有参数化输入、自动排道等功能,使实际操作变得简单快捷。

※ 焊接参数分段设定,智能控制功能,确保焊接的精度和质量。

※ 卡盘式固定方式,设备可流动作业,灵活方便。

※ 可选焊接方式为埋弧焊和气体保护焊接。

※ This equipment is a four-axis connected CNC system, which can be saddle-shaped welding on cylindrical, head and other surfaces. The form of intersecting holes is vertical orthogonal and eccentric vertical intersecting.
※ The on-line instruction function can correct the theoretical consistent motion trajectory generated automatically according to the input parameters, and remove the motion error caused by the workpiece or the non-standard positioning, thus ensuring the welding quality.
※ The device has the functions of parameterized input, automatic routing, etc., making the actual operation simple and fast.
※ Segment setting of welding parameters, intelligent control function to ensure welding accuracy and quality.
※ Cricket fixed mode, equipment can be mobile operation, flexible and convenient.
※ The alternative welding methods are buried arc welding and gas protection welding.

技术参数/Technical parameters





适用范围/Scope of application

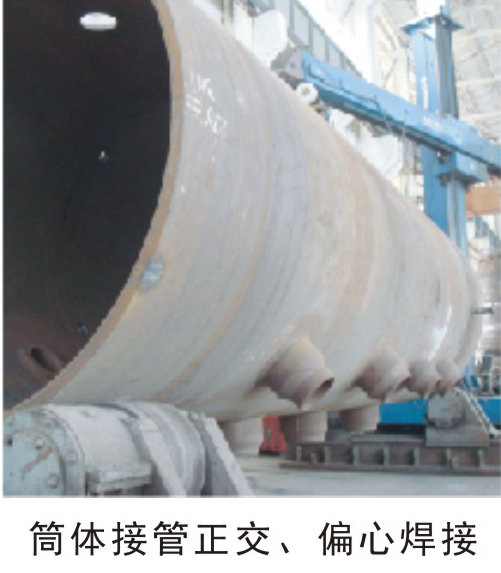

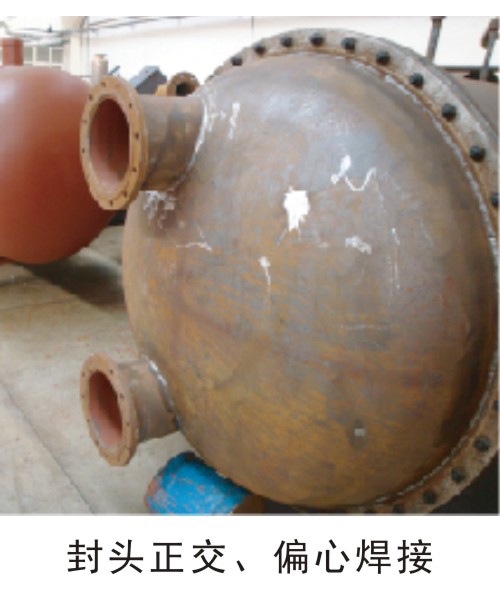

       用于化工压力容器、电站锅炉、核电设备、食品制药设备、造船与海洋工程及国防工业等行业,可在圆柱壳体、椭球封头上进行马鞍形焊接。

This machine can be applied to various industrial fields,such as pressure vessels for the chemical industry, station boiler,nuclear power equipment,food and pharmaceutical equipment,ship and ocean engineering, national defense industry and so on.It can be applied to saddle welding on cylindrical shell, conical shell, ellipsoidal head and so on.
